Grant Methods

SoapUI supports all of the OAuth 2.0 grant types. Below you can find additional information on their properties. For more information on configuring OAuth2 authorization, see OAuth2 Tutorial.

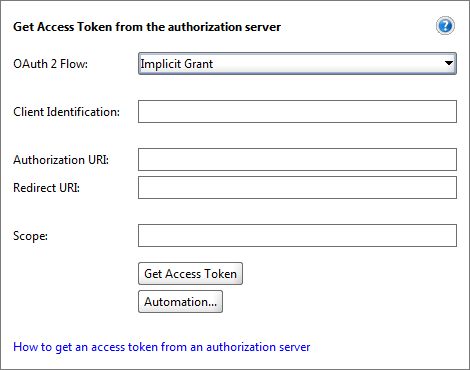

Implicit Grant

The Implicit Grant flow is used when the user-agent will access the protected resource directly, such as in a rich web application or a mobile app.

Option	Description
OAuth 2 Flow	The OAuth 2 method.
Client Identification	The string identifying the client.
Authorization URI	The authorization server URI.
Redirect URI	The URI you will be redirected to after successful authorization.
Scope	The full scope string defining the requested permissions.
Get Access Token	Click this button to retrieve the access token.
Automation	Click this button to open the Automated Token Profile Editor.

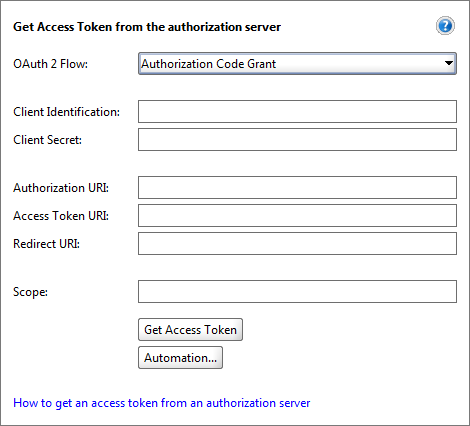

Authorization Code Grant

The Authorization Code flow is used when the client is a third-party server or web application, which performs the access to the protected resource.

Option	Description
OAuth 2 Flow	The OAuth 2 method.
Client Identification	The string identifying the client. This us not user login.
Client Secret	The secret string for the client. This us not user password.
Authorization URI	The authorization server URI.
Access Token URI	The URI to get access token from.
Redirect URI	The URI you will be redirected to after successful authorization.
Scope	The full scope string defining the requested permissions.
Get Access Token	Click this button to retrieve the access token.
Automation	Click this button to open the Automated Token Profile Editor.

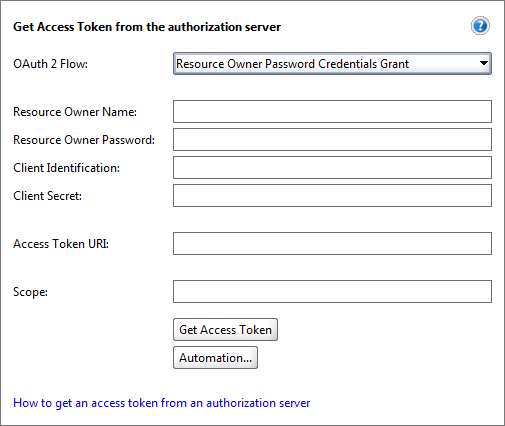

Resource Owner Password Credentials Grant

The password/Resource Owner Password Credentials grant takes the uses the resource owner password to obtain the access token. Optionally, a refresh token is also sent. The password is then discarded.

Option	Description
OAuth 2 Flow	The OAuth 2 method.
Resource Owner Name	Resource owner identification.
Resource Owner Password	Password used by the resource owner.
Client Identification	The string identifying the client. This us not user login.
Client Secret	The secret string for the client. This us not user password.
Access Token URI	The URI to get access token from.
Scope	The full scope string defining the requested permissions.
Get Access Token	Click this button to retrieve the access token.
Automation	Click this button to open the Automated Token Profile Editor.

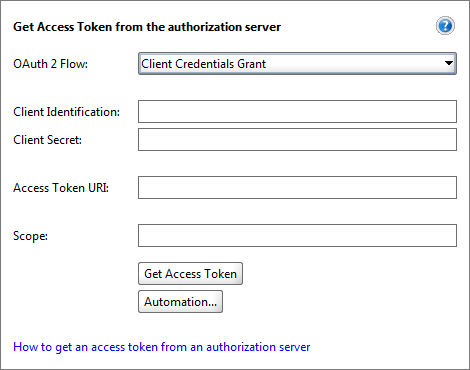

Client Credentials Grant

The Client Credentials grant type is used when the client is requesting access to protected resources under its control.

Option	Description
OAuth 2 Flow	The OAuth 2 method.
Client Identification	The string identifying the client. This us not user login.
Client Secret	The secret string for the client. This us not user password.
Access Token URI	The URI to get access token from.
Scope	The full scope string defining the requested permissions.
Get Access Token	Click this button to retrieve the access token.
Automation	Click this button to open the Automated Token Profile Editor.
